SC9133-RTL

Category: Counting Cameras | Published: 11/06/2025

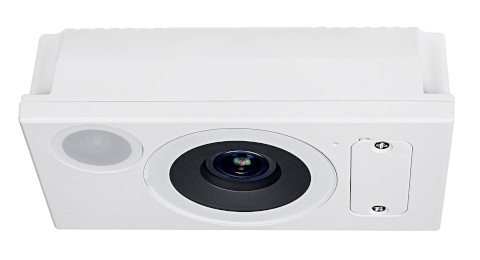

The VIVOTEK SC9133-RTL is a highly advanced AI People Counting Network Camera designed for precise monitoring and analysis of foot traffic, primarily in retail and other high-traffic environments. It’s a sophisticated solution that provides businesses with valuable insights to optimise operations and enhance customer experience. Here’s a breakdown of its key features and capabilities:

Core Functionality:

• AI-Powered People Counting: Equipped with VIVOTEK’s latest AI Deep Learning technology, it offers exceptional accuracy (up to 99%) in detecting and classifying people.

• Intelligent Object Classification: The camera can distinguish between people and non-human objects (like shopping carts or strollers), ensuring only relevant human traffic is counted, thereby minimizing false detection rates.

• Bi-directional Counting & U-turn Exclusion: It accurately counts people entering and exiting an area, and can exclude “U-turn” movements to prevent double counting.

Advanced Analytics & Business Insights:

• Real-time Data: Provides real-time, actionable data on people flow, object path tracking, and other metrics.

• Smart Analytics: Supports advanced features such as:

• Queue Management: Monitors and analyzes waiting times.

• Zone Counting: Detects and counts people within specific designated areas.

• Crowd Detection: Identifies and analyzes crowd density.

• Dwell Time & Group Counting: Provides insights into how long people stay in certain areas and the size of groups.

Business Optimization: The collected data can be used for:

• In-store layout improvement

• Promotional evaluation

• Staff planning

• Control of service times

• Understanding customer behavior and preferences

• Increasing Return on Investment (ROI)

Imaging & Technical Specifications:

• High Resolution: Features a 3-megapixel 1/2.8“ Progressive CMOS sensor, delivering clear video at 1792 x 1792 resolution at 30 fps.

• Fisheye Lens with Wide Field of View: A 1.47mm fixed-focal fisheye lens provides an extended field of view (140° horizontal, vertical, and diagonal) for comprehensive coverage of busy areas.

• Wide Dynamic Range (WDR Pro): Ensures clear image quality even in challenging lighting conditions with high contrast (92 dB dynamic range).

• Night Vision: Includes built-in IR and white LEDs for effective monitoring in low-light or even 0 lux environments.

• Video Compression: Supports H.265, H.264, and MJPEG compression for efficient storage and bandwidth usage.

• Audio Capability: Features one-way audio with a built-in microphone (effective range up to 5 meters).

• Flexible Mounting: Designed for flexible mounting heights, from 1.9 to 10 meters, making it suitable for various scenarios.

• Scalability: Supports stitching with up to 7 cameras for broader coverage.

• Robust Design: Boasts an IP66 rating for outdoor use, indicating protection against dust and powerful water jets, and an IK10 rating for vandal resistance.

• Power over Ethernet (PoE): Simplifies installation by allowing power and data transmission over a single Ethernet cable.

• Storage: Supports local storage via a microSD/SDHC/SDXC card slot (up to 1TB) and network-attached storage (NAS).

• Operating Temperature: Can operate in a wide range of temperatures, from -30°C to 60°C (-22°F to 140°F).

In essence, the VIVOTEK SC9133-RTL is a powerful and versatile AI-driven camera that goes beyond basic surveillance to provide intelligent, actionable insights for businesses looking to understand and optimize human movement within their spaces.

[
