CU9171-HF

Category: Modular Cameras | Published: 12/06/2025

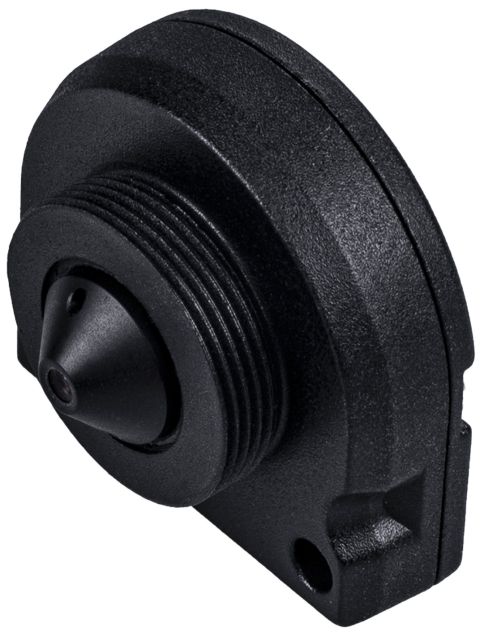

The VIVOTEK CU9171-HF is a 4 megapixel modular camera sensor with a 3.7mm pinhole lens, specifically designed for discreet and covert indoor surveillance. It is part of VIVOTEK’s split-type camera system, meaning it functions in conjunction with a separate VC9101 Video Core System (which is sold separately).

The CU9171-H has a discreet design. The cylinder-shaped sensor unit and pinhole lens, coupled with a 5 meter cable to connect to the video core, allow for flexible and unobtrusive installation in tight spaces or areas where aesthetics are important. This makes it ideal for locations like ATMs, banks, stores, and offices.

• 4 Megapixel
• 1/2.7“ CMOS Sensor
• 2688 x 1520 Max Resolution
• 30 Frames Per Second
• Fixed Focus Pinhole Lens
• 3.7mm Focal Length
• F2.5 Aperture
• ONVIF G S T
• Field of View (FoV): Horizontal: 93°, Vertical: 48° & Diagonal: 117°
• 0.045 lux at F2.5 (Color) Min Illumination
• WDR Pro
• Dimensions 33 x 32 x 20 mm
• Weight 43g
• -10°C ~ 50°C Operating Temperature
• Powered via the VC9101
• Smart VCA
• Trend Micro IoT Security
• Chrome Browser Support

Important Note: The VIVOTEK CU9171-HF is a camera unit only and requires the VIVOTEK VC9101 Video Core System to function as a complete surveillance solution. The VC9101 processes the video, provides networking capabilities, and supports additional features like two-way audio

[
