CU9183-H

Category: Modular Cameras | Published: 12/06/2025

The VIVOTEK CU9183-H is a 5 megapixel modular camera sensor with a 1.22mm fisheye lens, designed for covert and discreet indoor surveillance where wide-angle coverage is essential. Like the CU9171-HF, it’s part of VIVOTEK’s split-type camera system, meaning it needs to be connected to a VC9101 Video Core System (sold separately) to function.

Fisheye Lens for 360° Coverage: The most distinctive feature is its 1.22mm fisheye lens, which provides a 180° horizontal, vertical, and diagonal field of view. This allows for comprehensive coverage of a large area with a single camera, reducing the need for multiple cameras and simplifying installation.

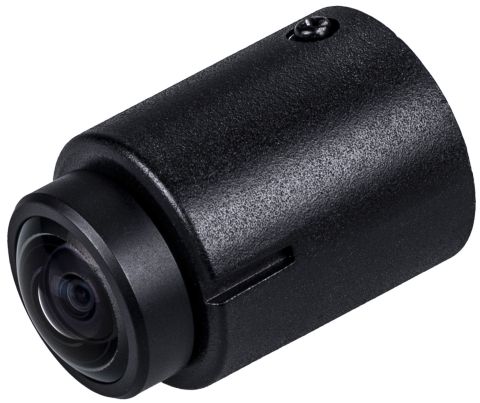

The VIVOTEK CU9183-H is a small, cylinder-shaped sensor unit, making it easy to conceal in various indoor environments like ATMs, banks, retail stores, and offices, where maintaining aesthetics is crucial.

• 5 Megapixel
• 1/2.7“ CMOS Sensor
• 1920 x 1920 Max Resolution
• 30 Frames Per Second
• Fixed Focus Fisheye Lens
• 1.2mm Focal Length
• F2.0 Aperture
• ONVIF G S T
• Field of View (FoV): Horizontal: 180°, Vertical: 180° & Diagonal: 180°
• 0.035 lux at F2.0 (Color) Min Illumination
• WDR Pro
• Dimensions ∅ 24 x 37 mm
• Weight 28g
• -10°C ~ 50°C Operating Temperature
• Powered via the VC9101
• Smart VCA
• Trend Micro IoT Security
• Chrome Browser Support

Important Note: As with the CU9171-HF, the VIVOTEK CU9183-H is strictly a camera unit and requires the VIVOTEK VC9101 Video Core System to operate as a functional surveillance camera. The VC9101 handles the video processing, network connectivity, and other system functionalities.

[
