CU9183-HF

Category: Modular Cameras | Published: 12/06/2025

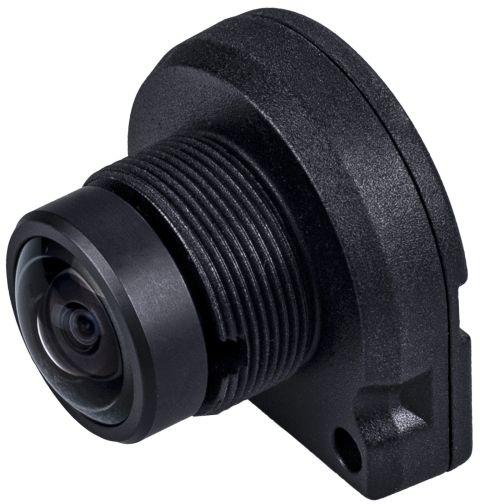

The VIVOTEK CU9183-HF is a 5 megapixel modular camera sensor with a 1.22mm fisheye lens, specifically distinguished by its flat shape. It’s designed for highly discreet and covert indoor surveillance where a wide, panoramic view is required, and the camera unit needs to blend seamlessly into its environment.

The CU9183-HF has a Discreet Design. The primary differentiator is its flat, recessed-mount form factor, which allows for extremely unobtrusive installation in surfaces like walls, ceilings, or even within fixtures. This makes it ideal for environments where aesthetics are paramount, such as high-end retail, offices, museums, or ATMs, where surveillance needs to be virtually invisible.

• 5 Megapixel
• 1/2.7“ CMOS Sensor
• 1920 x 1920 Max Resolution
• 30 Frames Per Second
• Fixed Focus Fisheye Lens
• Local Dewarping
• 1.22mm Focal Length
• F2.0 Aperture
• ONVIF G S T
• Field of View (FoV): 180° (Horizontal), 180° (Vertical), 180° (Diagonal)
• 0.035 lux at F2.0 (Color) Min Illumination
• WDR Pro
• Dimensions 33 x 32 x 28 mm
• Weight 52g
• -10°C ~ 50°C Operating Temperature
• Powered via the VC9101
• Smart VCA
• Trend Micro IoT Security
• Chrome Browser Support

Remember, the CU9183-HF is a component of a larger system. Its functionality depends entirely on its connection to a VIVOTEK VC9101 Video Core System.

[
